Arduino as a BIOS LPC flasher

Arduino in 3.3v

I used my special USB cable in order to run the Arduino in 3.3v mode:

Detecting the arduino

At the moment, I cannot detect the chip:

root@buzek /home/zoobab/soft/alix1c [1]# flashrom -p serprog:/dev/ttyUSB0:115200
flashrom v0.9.2-r1028 on Linux 2.6.35-27-generic (x86_64), built with libpci 3.0.0, GCC 4.4.4, little endian
flashrom is free software, get the source code at

Calibrating delay loop... OK.
serprog:Programmer name "ATMega88 LPC   "
No EEPROM/flash device found.
Note: flashrom can never write if the flash chip isn't found automatically.

Alix 1C LPC connector pinout


From the coreboot website:

1  LCLK0   LPC clock (33 MHz)
2  GND     ground
3  LAD0    LPC data 0
4  GND     ground
5  LAD1    LPC data 1
6  GND     ground
7  LAD2    LPC data 2
8  GND     ground
9  LAD3    LPC data 3
10 GND     ground
11 LFRAME# LPC frame
12 GND     ground
13 PCIRST# reset (active low)
14 NC      reserved
15 ISP     high to use LPC flash, low to use on-board flash, pulled low by resistor
16 VCC     +5V supply
17 GND     ground
18 V3      +3.3V supply
19 SERIRQ  serial interrupt
20 LDRQ#   LPC DMA request

The correspondence with the board.h is:

#define LED_PORT                        PORTB
#define LED0                            PB0
#define LED1                            PB1

#define LPC_PORT                        PORTC
#define LPC_DDR                         DDRC
#define LPC_PIN                         PINC
#define LPC_nLFRAM                      PC4
#define LPC_CLK                         PC5

#define LPC_RESET_PORT                  PORTB
#define LPC_nRESET                      PB2

I asked the Mike Stirling what was his pinout of his steup:

CLK - PORTC[5] - ATMEGA88 (DIL) pin 28
/LFRAM - PORTC[4] - ATMEGA88 (DIL) pin 27
LAD[3] - PORTC[3] - ATMEGA88 (DIL) pin 26
LAD[2] - PORTC[2] - ATMEGA88 (DIL) pin 25
LAD[1] - PORTC[1] - ATMEGA88 (DIL) pin 24
LAD[0] - PORTC[0] - ATMEGA88 (DIL) pin 23

/WP, /TBL, /INIT all tied high
Any other pins, e.g. MODE and ID pins, are no connect.

Correspondence matrix:

pinLPC pinArduino
LAD0 (pin3) analog0
LAD1 (pin5) analog1
LAD2 (pin7) analog2
LAD3 (pin9) analog3
LFRAME (pin11) analog4
LCLK0 (pin1) analog5

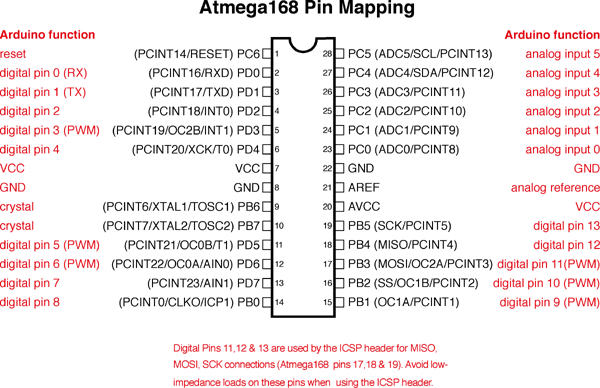

Arduino pin mapping:



Right now it does not work, need to try with an arduino mega which runs in 3.3v for sure.
